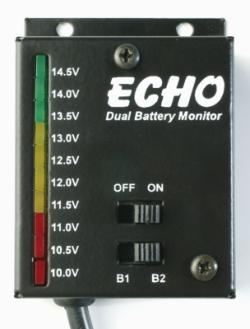

ECHO Silver Dual 12V Battery Monitor
Product Code: DBM-Sil
Model:
Discontinued

Product Information Technical Notes Product Documents Print
Product Information
  • Specially designed to withstand vibration and shock during off-road use
  • LED Bargraph displays battery voltage in 0.5V steps
  • Green, yellow & red LEDs indicates battery condition
  • Displays Battery 1 or Battery 2 status
  • ON/OFF switch to prolong battery life when not in use
  • Small, compact and easy to mount
  • Complete with 3 meter connecting cable
  • Available in black or silver finish
  • Battery reverse voltage protected
  • 1 Year warranty
Technical Notes
Voltage monitor range 10VDC to 14,5VDC
Operating current < 30mA
Monitor resolution 0.5V steps
Battery flat indication 3 x Red LEDs (10.0V to 11.5V)
Battery good indication 4 x Yellow LEDs (12.0V to 13.0V)
Battery charging indication 3 x Green LEDs (13.5V to 14.5V)
Voltage monitor accuracy 0.25V
Operating ambient temperature -20C to +60C
Dimensions 50mm x 70mm x 20mm
