Power Panel MK4 R00
Product Code: HPP1 MK4 R00
Model: HPP1 MK4 R00
Discontinued

Product Information Technical Notes Product Documents Print
Product Information
Product Features

  • 220VAC to 12 Volt 15 Amp 3-state (constant current, constant voltage & float charge)Lead-Acid Battery Charger with Fast and Trickle charge indicator
  • Unique DC to DC 12V 12 Amp Charger (no need for a separate dual battery switch)
  • All 2014 panels are LEAD CRYSTAL BATTERY READY
  • Digital Voltage and Current Monitor
  • Optional 150W 220VAC true sine wave inverter
  • Auto DC charger bypass when charging from vehicle (full 12A available to charge battery while fridge etc. runs directly from vehicles alternator)
  • DC to DC charger has auto ON and OFF vehicle voltage sensing switch
  • Battery under voltage lockout to prevent deep cycling and damage to battery
  • Integrated 180 Watt Solar Charge Controller
  • LED charge source indicator
  • Integral thermostatically controlled cooling fan
  • Integrated 220VAC Earth Leakage unit and overload Circuit Breaker.
  • 1x 3-pin SA and 1x EURO 220VAC output sockets
  • 220/240VAC MultiPlug Outlet
  • Can operate from any combination of 220VAC, Battery or Solar Panel
  • Short circuit protection on all outputs
  • Supplied with mounting hardware

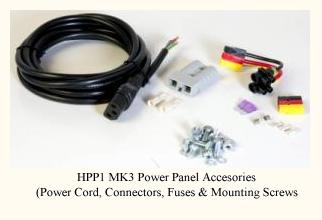

  • Supplied with all connectors required
  • Easy to install
  • Warranty now 2 years on 2014 units
Technical Notes
HPP1 MK4

HCdP Power Panel MK4 with Digital Battery Monitor and Multiplug Outlet

Technical Notes

Power Panel
Operating ambient temperature :  -20C to +45C
Mass :  gram
Dimensions :  Without inverter 235(W)x235(D)x100(H) mm3
:  With inverter 235(W)x270(D)x100(H) mm3
220VAC Charger
Input voltage :  120VAC to 265VAC 40Hz to 70Hz
Input connector :  Standard 3-pin kettle cord
Trickle charge current :  1 to 2.5 Amp nominal (Green AC LED ON)
Fast charge current :  15 Amp Maximum (Amber AC LED ON)
Fast charge voltage :  14,2V +/- 0,1V
Trickle charge voltage :  13.8V +/- 0.1V
Vehicle DC Charger
Input voltage (Vehicle GND & POS) :  10.5VDC to 15VDC
Ignition sense switch ON :  > 13,3V
Ignition sense switch OFF :  < 12.5V
Input connection :  Vehicle GND, POS & Ignition (Black, Red & Yellow Power-Pole connector)
Charge voltage :  14.2V +/- 0.1V
Charging current :  12 Amp maximum with Ignition ON
Input current :  30A maximum
Drain from vehicle battery :  Zero Amp with ignition OFF
Note :  This DC to DC charger eliminates the need for a dual battery switch
Solar Panel Charger
Input voltage :  16VDC to 26VDC
Power input :  180W maximum
Charge voltage :  14VDC
Charging current :  Depends on Solar Panel Wattage
Battery Monitor
Voltage Range :  9.0 to 19.9 Volt
Voltage Accuracy :  +/- 0.05 Volt
Current Range :  0.1A to 19.9A
Current Accuracy :  +/- 0.2A
Optional 220VAC 150W Inverter (R875 extra)
Output wave form :  True sine wave
Output voltage :  220VAC +/-5%
Output power :  150W continious
:  450W surge
Input voltage :  11VDC to 15VDC
Battery Under Voltage Lockout
Lockout voltage :  10.5 +/-0.25 Volt
Auto turn ON voltage :  12.5 +/- 0.25 Volt
Manual turn ON voltage :  > 10.75 Volt
Battery Connection
50A Brad Harrison connector
Outputs
Pump :  1x 12 Volt 7 Amp maximum Switched
Fridge :  1x 12 Volt 7 Amp maximum
Lights :  2x 12 Volt 5 Amp total maximum Switched
Sockets :  1x 12 Volt 11 Amp total maximum
220 VAC :  1x 3-pin 220VAC 10 Amp Switched Socket
:  1x 2-pin 220VAC 10A Euro Switched Socket
:  1x 220AC 10A IEC Female Socket for MultiPlugs
Inputs
AC :  220VAC 50Hz 16A max IEC 3-pin socket
Vehicle :  GND, Positive & Ignition(Black, Red & Yellow Power Pole connector)
Solar :  1x 5.08mm Green connector
