220VAC 180W True Sine Wave Inverter
Power Panel MK7S-20A Lux R00
Product Code: HPP1 MK7S-20A Lux R00
Model: HPP1 MK7S-20A Lux R00
ZAR 9870.00 (incl. VAT)
Price does not include optional Sine Wave Inverter

Product Information Technical Notes Product Documents Print
Product Information
Proven Design
  • Locally designed and manufactured
New Features
  • USB socket now on front panel for easier access
  • Battery fuse now on front panel for easier access
  • Improved battery fuse blown detection
  • Improved and less noisier cooling air flow
Product Features
  • 220VAC to 12 Volt  20 Amp Multistage Lead-Acid Battery Charger with Fast and Trickle charge indicator.
  • AC, DC and solar charger optimised for selectable Lead-Acid or LiFePo4 batteries.
  • 20A DC to DC charger with integrated 330W MPPT solar charge controller
  • Digital Voltage and Current Monitor
  • Dedicated USB charging port
  • Optional 180W 220VAC true sine wave inverter
  • Battery under voltage lockout to prevent deep cycling and damage to battery
  • Battery low and blown fuse indicator
  • LED charge source indicator
  • Integral thermostatically controlled cooling fan
  • Can operate from any combination of 220VAC, Battery or Solar Panel
  • Short circuit protection on all outputs
  • Supplied with mounting hardware
  • Supplied with all connectors required
  • Easy to install
  • Two year warranty
LED indicators
  • BL LED turns ON if 12V outputs are turned OFF due to battery voltage dropping below 11V
  • BF LED turns ON if main 30A battery fuse is  blown
  • DC LED turns ON if charging from vehicle and if 220VAC charger is switched OFF
  • SP LED turns green if charging from solar panel and if 220VAC charger is switched OFF
  • AC LED
    • turns Amber if fast charging and charging current is more than 4A
    • turns Green if trickle charging and current is less than 4A

Technical Notes
HPP1 MK7-20A Lux R00
HCdP Power Panel MK7 with 20A AC and DC-DC charger with MPPT solar charge controller
Technical Notes

Power Panel
Operating ambient temperature-20°C to +45°C
DimensionsWithout inverter 235(W)x235(D)x100(H) mm3
With inverter 235(W)x280(D)x100(H) mm3
220VAC Charger
Input voltage180VAC to 265VAC 40Hz to 70Hz
Input connectorStandard 3-pin kettle cord
Fully charged:Green AC LED ON
Trickle charge currentLess than 4 Amp nominal (Green AC LED ON)
Fast charge current20 Amp Maximum (Amber AC LED ON)
Fast charge voltage14,4V +/- 0,1V for both Lead-Acid and LiFePo4 batteries
Trickle charge voltage13.6V +/- 0.1V  only for Lead-Acid batteries

DC to DC Charger
Input voltage (Vehicle GND & POS)12.5VDC to 15VDC
Switch ON> 13,3V
Switch OFF< 12.5V
Input connectionVehicle GND, POS
Fast charge voltage14.4V +/- 0.1V  for both Lead-Acid and LiFePo4 batteries
Charging current20 Amp maximum
Trickle charge voltage:13.6V +/- 0.1V only for Lead-Acid batteries
Input current25A maximum
NoteThis DC to DC charger eliminates the need for a dual battery switch
Solar Panel Charger
Input voltage12VDC to 26VDC
Power input330W maximum
Control method:MPPT (Max Power Point Tracking)
Fast charge voltage14.4V +/- 0.1V  for both Lead-Acid and LiFePo4 batteries
Trickle charge voltage:13.6V +/- 0.1V  only for Lead-Acid batteries
Charging currentDepends on Solar Panel Wattage
Battery Monitor
Voltage Range9.0 to 19.9 Volt
Voltage Accuracy+/- 0.05 Volt
Current Range0.1A to 30A
Current Accuracy+/- 0.2A

Dedicated USB charging port
Current:1A maximum
Port data configuration:Meets China YD/T1591-2009 dedicated charging port specification
Optional 220VAC 180W Inverter
Output wave formTrue sine wave
Output voltage220VAC +/-5%
Output power180W continious
450W surge
Input voltage11VDC to 15VDC
Battery Under Voltage Lockout
Lockout voltage<11 Volt
Auto turn ON voltage13 +/- 0.25 Volt

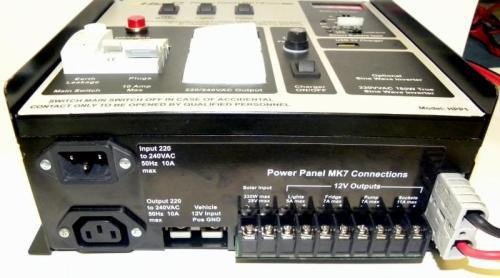

Battery Connection
50A Brad Harrison connector
Pump1x 12 Volt 7 Amp maximum Switched
Fridge1x 12 Volt 7 Amp maximum
Lights1x 12 Volt 5 Amp total maximum Switched
Sockets1x 12 Volt 11 Amp total maximum
USB port:USB 5V 1A (total) port
220 VAC1x 3-pin 220VAC 10 Amp Switched Socket
1x 2-pin 220VAC 10A Euro Switched Socket
1x 220AC 10A IEC Female Socket for MultiPlugs
AC220VAC 50Hz 16A max IEC 3-pin socket
VehicleGND (Black) & Positive (Red) wires/connector block
Solar20A terminal block
MK7 Wrong Wiring
MK7 Wrong Wiring
MK7 Mounting Holes
MK7 Mounting Holes
MK7 Block Diagram
MK7 Block Diagram
MK7S Owner's Manual
MK7S Owner's Manual
MK7 Correct Wiring
MK7 Correct Wiring
